Experience unparalleled boating with our E-Series batteries, expertly designed for compatibility with ePropulsion's Spirit, Navy, and POD motors. Offering consistent, high-quality power and sustainable technology, these batteries redefine marine propulsion for today's mariner.

Specifications

E60
Capacity : 3072 Wh / 60 Ah
Rated Voltage : 51.2 V
Battery Life : 3,000 cycles at 80% SoH
Weight : 33 kg
Dimensions : 512 x 290 x 300 mm (20.2 x 11.4 x 11.8 in)
Cut-off Voltage : 41.6 V
Final Charging Voltage : 57.6 V
Max Continuous Discharging Current : 70 A
Series Connection : N/A
Parallel Connection : Up to 16
Cell Configuration : 16S4P
Charger : E-Series battery charger
Charging Time (220V) : One charger: 2.7 Hrs / Two chargers: 1.3 Hrs
Charging Time (110V) : One charger: 4 Hrs / Two chargers: 2 Hrs
Charging Temperature : 0 to 55℃ (32 to 131˚F)
Discharging Temperature : -10 to 60℃ (14 to 140˚F)
Communication : Available: CAN-Bus for Parallel RS485 for ePropulsion motors
Shipping Classification : UN3480, Class 9, UN38.3 Certified
Approvals : CE, UKCA, FCC
Warranty (Non-Commercial Use) : 2 years

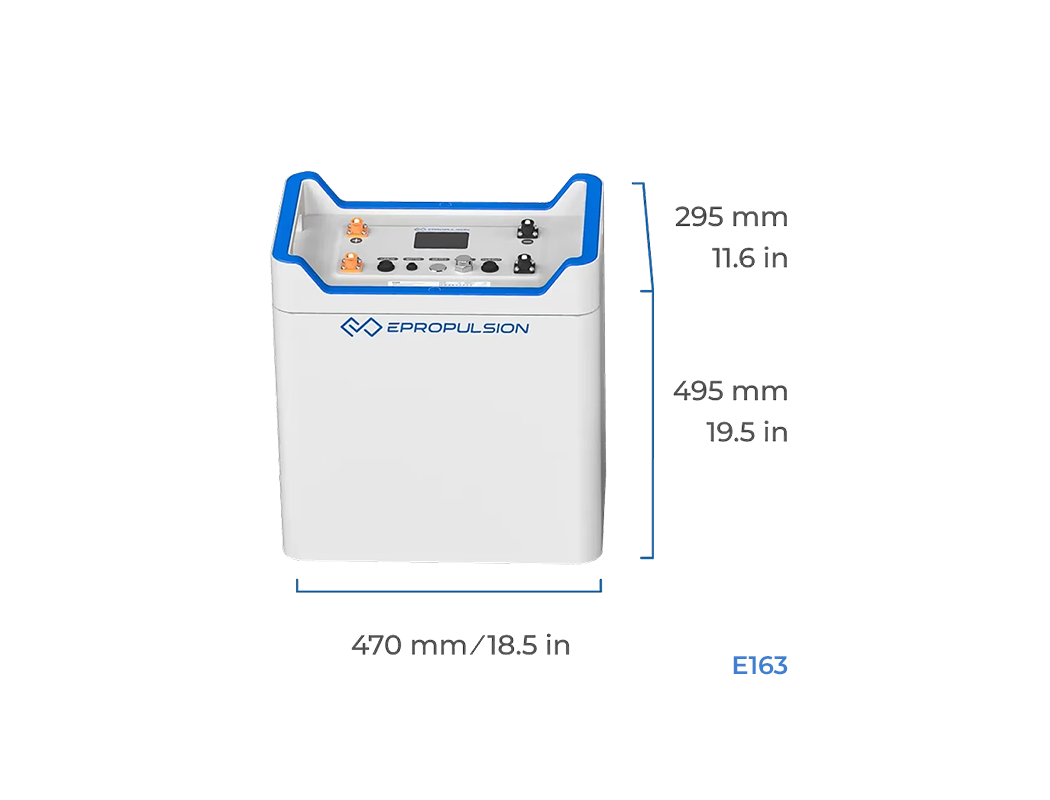

E163
Capacity : 8345 Wh / 163 Ah
Rated Voltage : 51.2 V
Battery Life : 3,000 cycles at 80% SoH
Weight : 76 kg
Dimensions : 470 x 295 x 495 mm (18.5 x 11.6 x 19.5 in)
Cut-off Voltage : 41.6 V
Final Charging Voltage : 57.6 V
Max Continuous Discharging Current : 150 A
Series Connection : N/A
Parallel Connection : Up to 16
Cell Configuration : 16S1P
Charger : E-Series battery charger
Charging Time (220V) : One charger: 7.2 Hrs / Two chargers: 3.6 Hrs
Charging Time (110V) : One charger: 11 Hrs / Two chargers: 5.4 Hrs
Charging Temperature : 0 to 55℃ (32 to 131˚F)
Discharging Temperature : -10 to 60℃ (14 to 140˚F)
Communication : Available: CAN-Bus for Parallel RS485 for ePropulsion motors
Shipping Classification : UN3480, Class 9, UN38.3 Certified
Approvals : CE, UKCA, FCC
Warranty (Non-Commercial Use) : 2 years

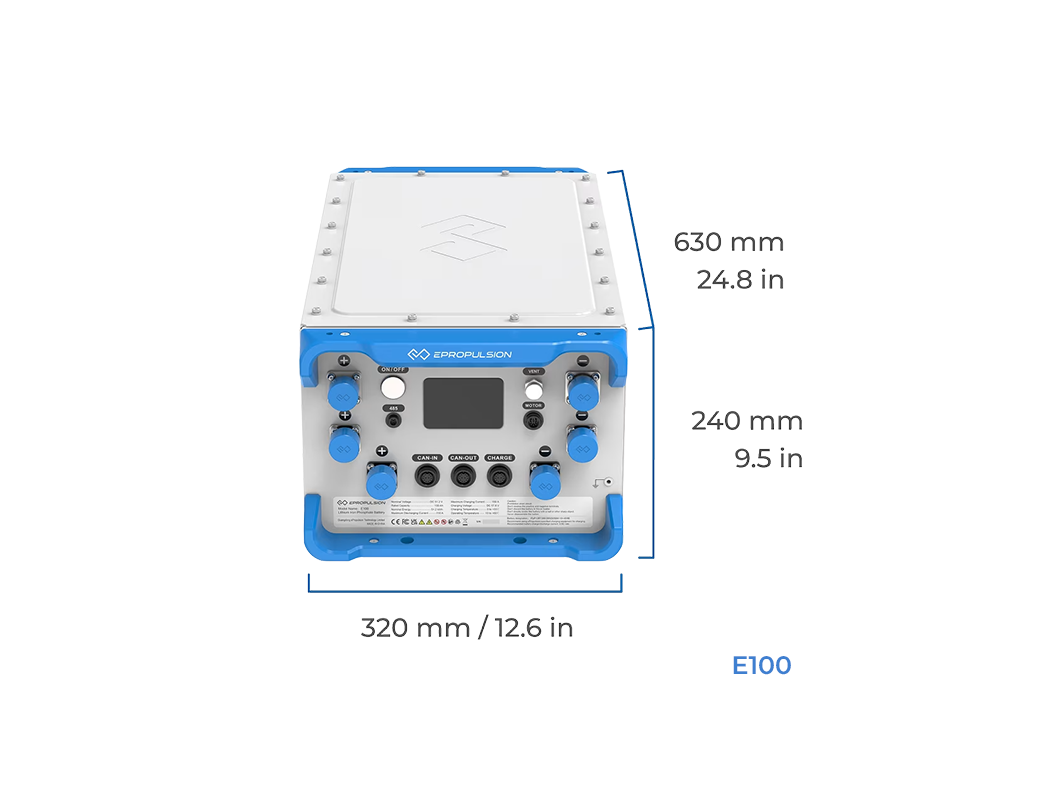

E100
Capacity : 5120 Wh / 100 Ah
Rated Voltage : 51.2 V
Battery Life : 3,000 cycles at 80% SoH
Weight : 48.5 kg / 106.9lbs
Dimensions : 630 x 320 x 240 mm (24.8 x 12.6 x 9.5 in)
Cut-off Voltage : 41.6 V
Final Charging Voltage : 57.6 V
Max Continuous Discharging Current : 150 A
Series Connection : 2 (Cannot connect in parallel when used in series)
Parallel Connection : Up to 16
Cell Configuration : 16S1P
Charger : E-Series battery charger or G-Series battery charger when upgraded to 96V system
Charging Time (220V) : One E100 Battery - With one E-Series charger: 5.1 hrs / With two E-Series chargers: 2.6 hrs | Two E100 Batteries are connected in series - With one G-Series charger 16A: 3.5 hrs, With one G-Series charger 32A: 1.8 hrs
Charging Time (110V) : One E100 Battery - With one E-Series charger: 8.5 hrs / With two E-Series chargers: 4.3 hrs | Two E100 Batteries are connected in series - With one G-Series charger 16A: 7 hrs, With one G-Series charger 32A: 3.5 hrs
Charging Temperature : 0 to 55℃ (32 to 131˚F)
Discharging Temperature : -10 to 60℃ (14 to 140˚F)
Communication : One RS485 for ePropulsion 48V motors, One CAN (twoports) for parallel or series batteries, One CAN for ePropulsion 96V motor, One CAN for 48V or 96V charger
Shipping Classification : UN3480, Class 9, UN38.3 Certified
Approvals : CE, UKCA, FCC
Warranty (Non-Commercial Use) : 2 years
