The Pod Drive eSSA motor unlocks new design freedom for naval architects, setting a fresh benchmark in marine innovation while elevating every vessel with luxury and sophistication. Built for durability and constant saltwater exposure, it is crafted from marine-grade, high-strength aluminium alloy for exceptional impact resistance and long-term reliability. Its self-cooling design dissipates heat naturally through water submersion, eliminating the need for cooling channels and frequent impeller replacements, and rigorous testing ensures dependable, low-maintenance performance in even the harshest marine environments

Specifications

Pod Drive 12 eSSA
Input power : 12 kW
Input voltage : 96 VDC
Weight (driver unit included) : 31 kg (68.3 lbs)
Dimensions (L x W x H) : Motor: 603 x 420 x 122 mm / Driver unit: 285 x 250 x 192mm
Cooling System : Motor: Natural cooling / Driver unit: Fan cooling
Rated RPM : 1700 rpm
Propeller : 11 13/16″ x 9 13/16″ propeller / 13” x 9 3/4” folding propeller

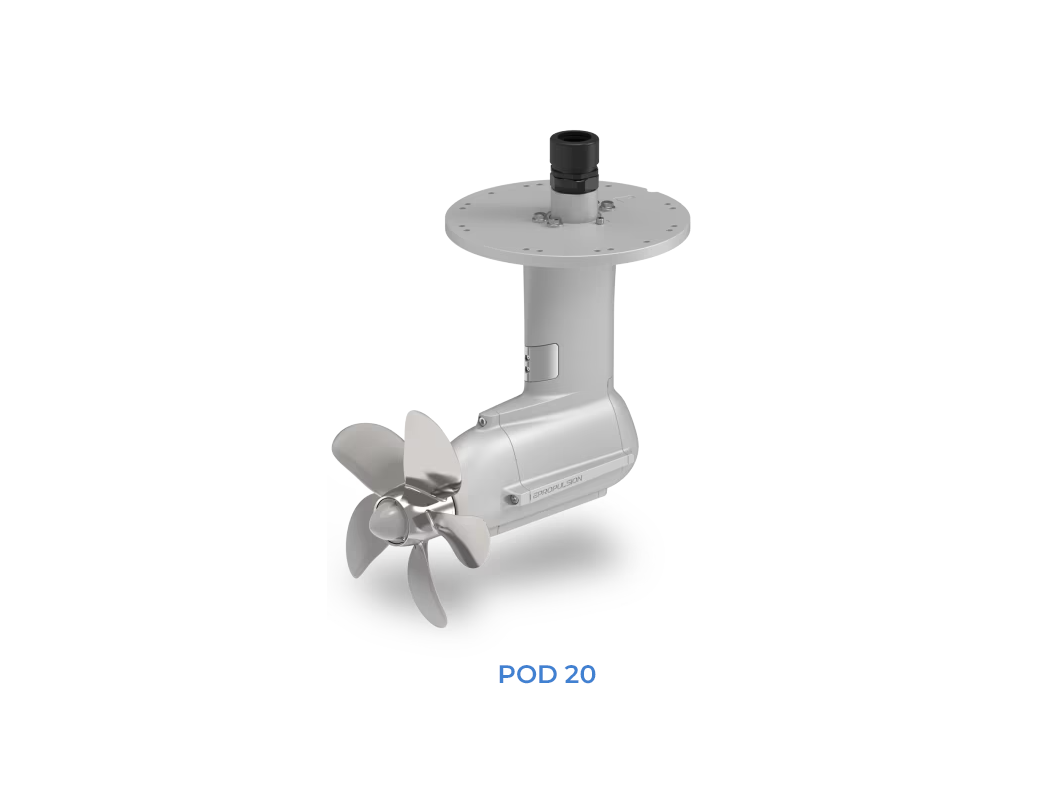

Pod Drive 20 eSSA
Input power : 20 kW
Input voltage : 96 VDC
Weight (driver unit included) : 53 kg (116.8 lbs)
Dimensions (L x W x H) : Motor: 642 x 596 x 168 mm / Driver unit: 343 x 296 x 197 mm
Cooling System : Motor: Natural cooling / Driver unit: Fan cooling
Rated RPM : 1500 rpm
Propeller : 15” x 10 7/8″ propeller
