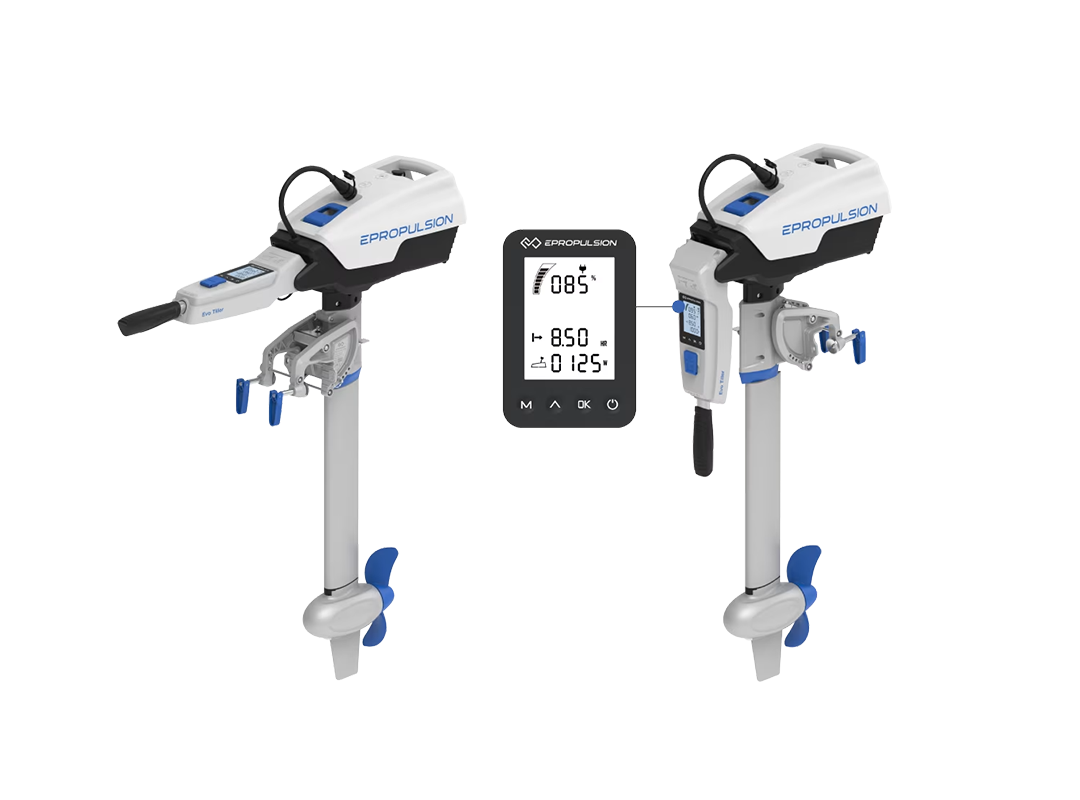

The Spirit 1.0 Plus is a versatile 1kW electric outboard engineered for a wide range of vessels, from dinghies and tenders to fishing boats and small sailboats. Compact yet powerful, it is equipped with a high-capacity 1,276 Wh integrated lithium battery, delivering extended range and reliable performance on the water. Combining lightweight construction, responsive handling, and clean energy, the Spirit 1.0 Plus sets a benchmark in portable electric propulsion.
The EVO model enhances this capability with a hydrogeneration function, allowing the battery to recharge while under sail.
Specifications
Plus
Power : 1 kW (3HP equivalent**)
Standard Battery : Spirit Battery Plus, 1276 Wh li-ion polymer
Input Voltage : 39V – 60V
Motor Weight* : 10.6 kg / 23.4 lbs
Battery Weight : 8.7 kg / 19.2 lbs
Standard Charging : 8.5 Hrs
Fast Charging : 3.5 Hrs
External Battery : Yes, and E-Series Battery recommended
Propeller : 11″ × 5.8″ 2-blade composite propeller
Trim / Tilt Angle : 0°, 7°, 14°, 21° / 70°
Shaft Length : Extra Short, Short, Long
Control : Tiller
Hydrogeneration : No
Motor : Brushless DC motor
Direct Drive : Yes
Evo
Power : 1 kW (3HP equivalent**)
Standard Battery : Spirit Battery Plus, 1276 Wh li-ion polymer
Input Voltage : 39V – 60V
Motor Weight* : 11.3 kg / 24.9 lbs
Battery Weight : 8.7 kg / 19.2 lbs
Standard Charging : 8.5 Hrs
Fast Charging : 3.5 Hrs
External Battery : Yes, and E-Series Battery recommended
Propeller : 11″ × 5.8″ 2-blade composite propeller
Trim / Tilt Angle : 0°, 7°, 14°, 21° / 85°
Shaft Length : Short, Long
Control : Evo Tiller
Hydrogeneration : Yes
Motor : Brushless DC motor
Direct Drive : Yes
Evo Remote
Power : 1 kW (3HP equivalent**)
Standard Battery : Spirit Battery Plus, 1276 Wh li-ion polymer
Input Voltage : 39V – 60V
Motor Weight* : 10.6 kg / 23.4 lbs
Battery Weight : 8.7 kg / 19.2 lbs
Standard Charging : 8.5 Hrs
Fast Charging : 3.5 Hrs
External Battery : Yes, and E-Series Battery recommended
Propeller : 11″ × 5.8″ 2-blade composite propeller
Trim / Tilt Angle : 0°, 7°, 14°, 21° / 85°
Shaft Length : Short, Long
Control : Evo Top Mount Control / Evo Side Mount Control / Evo Dual Remote Control
Hydrogeneration : Yes
Motor : Brushless DC motor
Direct Drive : Yes
* The weight is measured with the short shaft version.
** Any reference to horsepower (HP) for electric motors is a theoretical equivalent based on thrust and performance characteristics, and not a direct measure of power. This comparison is intended for illustrative purposes only and may not reflect exact power equivalency.
A decade of evolution has led to its fourth generation, ePropulsion expands the Spirit range to 2kW with the introduction of the new Spirit 2, a powerful battery-integrated electric outboard. This upgraded model delivers enhanced power while maintaining a similar compact size.
Featuring a 1.5kWh battery, it revolutionizes the experience for dinghies and day cruisers, providing silent, eco-friendly power at just 20.6 kg*. Its hydrogeneration function allows the battery to recharge while under sail, maximizing battery value and optimizing space for effortless adventures.
* Combined weight of motor and battery, excluding transom bracket.
Weight varies based on shaft length - Extra Short: 20.6kg, Short: 20.8kg, Long: 21kg.
Specifications
Nominal Power : 2 kW
Maximum Power (in Sport Mode) : 3 kW
Battery Capacity : 1539 Wh
Motor Weight* (excluding bracket) : Extra Short: 10.2 kg / Short: 10.4 kg / Long: 10.7 kg
Motor Weight* (including bracket) : Extra Short: 12.6 kg / Short: 12.8 kg / Long: 13.1 kg
Battery Weight : 10.4 kg
Battery Life : 1000 cycles at 80% SoH
Charging Time : Standard charger: 8 Hrs / Fast charger: 2 Hrs
External Battery : ePropulsion E Series Battery
Charging Temperature : -15°C - 60°C Charging below 0°C requires the use of fast charger (with battery communication function)
Operating Temperature : -10°C - 65°C
Storage Temperature : 5°C - 40°C
Rated RPM : 1700 to 2100
Trim Angle Adjustment : 0°, 7°, 14°, 21°
Tilt Angle : 70°, 90°
Shallow Water Mode Tilt Angle : 35°
Steering Range : ±90°
Dimensions : Extra Short: 410 x 190 x 915 mm / Short: 410 x 190 x 1015 mm / Long: 410 x 190 x 1140 mm
Propeller : 2-blade composite propeller, diameter 240mm, pitch 167mm
The Navy Series delivers powerful, efficient, and reliable electric propulsion with outputs from 3 to 6 kW (equivalent to 6–9.9 HP). Its direct-drive system ensures quiet operation and minimal maintenance, while integrated hydrogeneration technology allows the battery to recharge under sail. Combining performance with sustainability, the Navy Series is the ideal choice for boaters who demand both power and eco-friendly innovation.
Specifications
Navy 3.0 Evo
Power : 3 kW (6HP equivalent**)
Input voltage : 39V – 60V
Recommended Battery : ePropulsion E-Series Battery
Motor Weight : Short: 24.3 kg / 53.6 lbs, Long: 27.5 kg / 60.63 lbs
Propeller : 10.2″ × 6.7″ 2-blade composite propeller
Trim / Tilt Angle : 0°, 5°, 10°, 15°, 20°, 35°, 50°, 65 and 80°
Shaft Length : Short, Long
Control : Evo Tiller / Evo Top Mount Control / Evo Side Mount Control / Evo Dual Remote Control
Hydrogeneration : Yes
Motor : Brushless DC motor
Direct Drive : Yes
Navy 6.0 Evo
Power : 6 kW (9.9HP equivalent**)
Input voltage : 39 V – 60 V
Recommended Battery : ePropulsion E-Series Battery
Motor Weight : Short: 28.5 kg / 62.8 lbs, Long: 29.5 kg / 65 lbs
Propeller : 12.6″ × 10.8″ 3-blade composite propeller / 13.4″ × 8.5″ 3-blade composite propeller / 12.6″ × 8.7″ 3-blade aluminum propeller (optional)
Trim / Tilt Angle : 0°, 5°, 10°, 15°, 20°, 35°, 50°, 65 and 80°
Shaft Length : Short, Long
Control : Evo Tiller / Evo Top Mount Control / Evo Side Mount Control / Evo Dual Remote Control
Hydrogeneration : Yes
Motor : Brushless DC motor
Direct Drive : Yes
** Any reference to horsepower (HP) for electric motors is a theoretical equivalent based on thrust and performance characteristics, and not a direct measure of power. This comparison is intended for illustrative purposes only and may not reflect exact power equivalency.
The X-Series is a breakthrough in marine electric propulsion, setting new standards for performance, efficiency, and sustainability. Precision-engineered and developed through advanced research and innovation, it combines high power density with intelligent control systems and a cutting-edge design. The result is a propulsion solution that delivers maximum reliability, effortless handling, and a cleaner, more exciting boating experience.
Specifications
X-40
Input power : 40 kW
Nominal voltage : 96 VDC
Cooling System : Closed Loop Liquid Cooling
Rated rotational speed : 1500 - 2100 rpm
Trim & Tilt : Power Trim/Tilt
Trim/Tilt Angle : -4° to 61°
Steering : Integrated electric steering
Steering Angle : ±45°
Propeller : 15" x 10 3/4" (available in L&R rotation) / 13 3/8" x 16 3/4" (available in L&R rotation)
L Shaft
Weight : 99kg
Shaft Length : 508 mm (20")
Dimensions (L x W x H) : 757 x 360 x 1233 mm
XL Shaft
Weight : 101.5kg
Shaft Length : 635 mm (25")
Dimensions (L x W x H) : 757 x 360 x 1360 mm
X-20
Input power : 20 kW
Nominal voltage : 96 VDC
Cooling System : Natural cooling
Rated rotational speed : 1200 - 1800 rpm
Trim & Tilt : Power Trim/Tilt
Trim/Tilt Angle : -4° to 61°
Steering : Integrated electric steering
Steering Angle : ±45°
Propeller : 15" x 10 3/4" (available in L&R rotation) / 13 3/8" x 16 3/4" (available in L&R rotation)
L Shaft
Weight : 79kg
Shaft Length : 508 mm (20")
Dimensions (L x W x H) : 674 x 360 x 1229 mm
XL Shaft
Weight : 81kg
Shaft Length : 635 mm (25")
Dimensions (L x W x H) : 674 x 360 x 1356 mm
X-12
Input power : 12 kW
Nominal voltage : 96 VDC
Cooling System : Natural cooling
Rated rotational speed : 1100 - 2000 rpm
Trim & Tilt : Power Trim/Tilt
Trim/Tilt Angle : -4° to 61°
Steering : Integrated electric steering
Steering Angle : ±45°
Propeller : 11 13/16" x 10 5/8" (available in L&R rotation) / 11 7/16" x 14 3/16" (available in L&R rotation)
S Shaft
Weight : 48kg
Shaft Length : 381 mm (15”)
Dimensions (L x W x H) : 560 x 266 x 978 mm
L Shaft
Weight : 50kg
Shaft Length : 508 mm (20”)
Dimensions (L x W x H) : 560 x 266 x 1105 mm
ePropulsion’s POD Drives are direct-drive, low-maintenance electric motors designed for sailboats and small craft. Compact and space-efficient, they maximise cabin area while delivering a quiet, vibration-free onboard experience. Filling the gap left by sub-10 HP** diesel saildrives, POD Drives provide a powerful and sustainable alternative to traditional outboard motors.
Specifications
POD 1.0 Evo
Input Power : 1 kW
Equivalent Power : 3 HP**
Input Voltage : 39 V – 60 V
Recommended Battery : ePropulsion E-Series Battery
Weight : 6.2 kg / 13.7 lbs
Propeller : 11″ × 5.8″ 2-blade composite propeller
Hydrogeneration : Yes
Motor : Brushless DC motor
Direct Drive : Yes
Maintenance-Free : Yes
POD 3.0 Evo
Input Power : 3 kW
Equivalent Power : 6 HP**
Input Voltage : 39 V – 60 V
Recommended Battery : ePropulsion E-Series Battery
Weight : 15.3 kg / 33.7 lbs
Propeller : 10.2″ × 6.7″ 2-blade composite propeller
Hydrogeneration : Yes
Motor : Brushless DC motor
Direct Drive : Yes
Maintenance-Free : Yes
POD 6.0 Evo
Input Power : 6 kW
Equivalent Power : 9.9 HP**
Input Voltage : 39 V – 60 V
Recommended Battery : ePropulsion E-Series Battery
Weight : 31kg / 68.3lbs
Propeller : 12.6″ × 8.7″ 3-blade aluminum propeller
Hydrogeneration : Yes
Motor : Brushless DC motor
Direct Drive : Yes
Maintenance-Free : Yes
** Any reference to horsepower (HP) for electric motors is a theoretical equivalent based on thrust and performance characteristics, and not a direct measure of power. This comparison is intended for illustrative purposes only and may not reflect exact power equivalency.
The Pod Drive eSSA motor unlocks new design freedom for naval architects, setting a fresh benchmark in marine innovation while elevating every vessel with luxury and sophistication. Built for durability and constant saltwater exposure, it is crafted from marine-grade, high-strength aluminium alloy for exceptional impact resistance and long-term reliability. Its self-cooling design dissipates heat naturally through water submersion, eliminating the need for cooling channels and frequent impeller replacements, and rigorous testing ensures dependable, low-maintenance performance in even the harshest marine environments
Specifications
Pod Drive 12 eSSA
Input power : 12 kW
Input voltage : 96 VDC
Weight (driver unit included) : 31 kg (68.3 lbs)
Dimensions (L x W x H) : Motor: 603 x 420 x 122 mm / Driver unit: 285 x 250 x 192mm
Cooling System : Motor: Natural cooling / Driver unit: Fan cooling
Rated RPM : 1700 rpm
Propeller : 11 13/16″ x 9 13/16″ propeller / 13” x 9 3/4” folding propeller
Pod Drive 20 eSSA
Input power : 20 kW
Input voltage : 96 VDC
Weight (driver unit included) : 53 kg (116.8 lbs)
Dimensions (L x W x H) : Motor: 642 x 596 x 168 mm / Driver unit: 343 x 296 x 197 mm
Cooling System : Motor: Natural cooling / Driver unit: Fan cooling
Rated RPM : 1500 rpm
Propeller : 15” x 10 7/8″ propeller
The I-Series delivers eco-friendly electric inboard motors enhanced with advanced technology, intelligent features, and a user-focused design. Powered by our highly modular ePropulsion Smart System Architecture (eSSA) and supported by IoT connectivity services, it provides an unmatched boating experience defined by simplicity, intelligence, safety, and reliability.
Specifications
I-10
Input power : 10 kW
Input voltage : 86 to 115 VDC
Weight : 45kg
Dimensions (L x W x H) : 565 x 295 x 380 mm
Cooling method : Air cooling
Rated rotational speed : 1500 rpm
Operation and interaction : Throttle & display (standard)
Connectivity service : Supported
I-20
Input power : 20 kW
Input voltage : 86 to 115 VDC
Weight : 49.5kg
Dimensions (L x W x H) : 580 x 330 x 380 mm
Cooling method : Water cooling (air cooling optional)
Rated rotational speed : 1500 rpm
Operation and interaction : Throttle & display (standard)
Connectivity service : Supported
I-40
Input power : 40 kW
Input voltage : 86 to 115 VDC
Weight : 85kg
Dimensions (L x W x H) : 790 x 450 x 410 mm
Cooling method : Water cooling (air cooling optional)
Rated rotational speed : 1000 rpm
Operation and interaction : Throttle & display (standard)
Connectivity service : Supported
The H-Series is our 60–250 kW inboard range, purpose-built for large sailing yachts and motor vessels from 60 to 100 feet (18–30 metres) with full displacements of up to 200 tons. Delivering powerful performance with minimal noise, reduced vibration, and zero exhaust emissions, the H-Series sets a new standard for clean, efficient propulsion in larger craft.
Specifications
H-100
Rated Voltage : 540 VDC
Rated Power : 100 kW
Rated Torque : 797 Nm
Rated Speed : 1150 rpm
Rated Efficiency : 96%
IP Rating : IP67
Insulation Level : H
Cooling Methods : Water Cooling
Operating Temperature : -25℃ ~ +55℃
Dimensions : 443 x 315 mm (17.4 x 12.4 in)
Experience unparalleled boating with our E-Series batteries, expertly designed for compatibility with ePropulsion's Spirit, Navy, and POD motors. Offering consistent, high-quality power and sustainable technology, these batteries redefine marine propulsion for today's mariner.
Specifications
E60
Capacity : 3072 Wh / 60 Ah
Rated Voltage : 51.2 V
Battery Life : 3,000 cycles at 80% SoH
Weight : 33 kg
Dimensions : 512 x 290 x 300 mm (20.2 x 11.4 x 11.8 in)
Cut-off Voltage : 41.6 V
Final Charging Voltage : 57.6 V
Max Continuous Discharging Current : 70 A
Series Connection : N/A
Parallel Connection : Up to 16
Cell Configuration : 16S4P
Charger : E-Series battery charger
Charging Time (220V) : One charger: 2.7 Hrs / Two chargers: 1.3 Hrs
Charging Time (110V) : One charger: 4 Hrs / Two chargers: 2 Hrs
Charging Temperature : 0 to 55℃ (32 to 131˚F)
Discharging Temperature : -10 to 60℃ (14 to 140˚F)
Communication : Available: CAN-Bus for Parallel RS485 for ePropulsion motors
Shipping Classification : UN3480, Class 9, UN38.3 Certified
Approvals : CE, UKCA, FCC
Warranty (Non-Commercial Use) : 2 years
E163
Capacity : 8345 Wh / 163 Ah
Rated Voltage : 51.2 V
Battery Life : 3,000 cycles at 80% SoH
Weight : 76 kg
Dimensions : 470 x 295 x 495 mm (18.5 x 11.6 x 19.5 in)
Cut-off Voltage : 41.6 V
Final Charging Voltage : 57.6 V
Max Continuous Discharging Current : 150 A
Series Connection : N/A
Parallel Connection : Up to 16
Cell Configuration : 16S1P
Charger : E-Series battery charger
Charging Time (220V) : One charger: 7.2 Hrs / Two chargers: 3.6 Hrs
Charging Time (110V) : One charger: 11 Hrs / Two chargers: 5.4 Hrs
Charging Temperature : 0 to 55℃ (32 to 131˚F)
Discharging Temperature : -10 to 60℃ (14 to 140˚F)
Communication : Available: CAN-Bus for Parallel RS485 for ePropulsion motors
Shipping Classification : UN3480, Class 9, UN38.3 Certified
Approvals : CE, UKCA, FCC
Warranty (Non-Commercial Use) : 2 years
E100
Capacity : 5120 Wh / 100 Ah
Rated Voltage : 51.2 V
Battery Life : 3,000 cycles at 80% SoH
Weight : 48.5 kg / 106.9lbs
Dimensions : 630 x 320 x 240 mm (24.8 x 12.6 x 9.5 in)
Cut-off Voltage : 41.6 V
Final Charging Voltage : 57.6 V
Max Continuous Discharging Current : 150 A
Series Connection : 2 (Cannot connect in parallel when used in series)
Parallel Connection : Up to 16
Cell Configuration : 16S1P
Charger : E-Series battery charger or G-Series battery charger when upgraded to 96V system
Charging Time (220V) : One E100 Battery - With one E-Series charger: 5.1 hrs / With two E-Series chargers: 2.6 hrs | Two E100 Batteries are connected in series - With one G-Series charger 16A: 3.5 hrs, With one G-Series charger 32A: 1.8 hrs
Charging Time (110V) : One E100 Battery - With one E-Series charger: 8.5 hrs / With two E-Series chargers: 4.3 hrs | Two E100 Batteries are connected in series - With one G-Series charger 16A: 7 hrs, With one G-Series charger 32A: 3.5 hrs
Charging Temperature : 0 to 55℃ (32 to 131˚F)
Discharging Temperature : -10 to 60℃ (14 to 140˚F)
Communication : One RS485 for ePropulsion 48V motors, One CAN (twoports) for parallel or series batteries, One CAN for ePropulsion 96V motor, One CAN for 48V or 96V charger
Shipping Classification : UN3480, Class 9, UN38.3 Certified
Approvals : CE, UKCA, FCC
Warranty (Non-Commercial Use) : 2 years
The G-Series batteries are engineered for seamless integration with ePropulsion’s eSSA range of products, delivering efficient, high-capacity energy for larger marine applications. Built on advanced lithium iron phosphate technology, they provide stable voltage, exceptional energy density and an extended cycle life, ensuring consistent performance under demanding conditions. With a robust all-metal housing and integrated battery management system, the G-Series offers enhanced safety, durability and reliability, setting a new standard for electric marine propulsion.
Specifications
G102-100
Chemistry : Lithium Iron Phosphate (LiFePO4)
Rated Voltage : 102.4 V
Capacity : 10240 Wh / 100 Ah
Battery Life : 3,000 cycles at 80% SoH
Weight : 100 kg (220.5 lbs)
Dimensions : 680 x 500 x 300 mm (26.8 x 19.7 x 11.8 in)
Cut-off Voltage : 83.2 V
Final Charging Voltage : 115.2 V
Max Continuous Discharging Current : 100 A
Serial Connection : N/A
Parallel Connection :Up to 8 in 1 cluster. Multiple clusters are possible in the system
Cell Configuration : 32S1P
Charging Temperature : 0°C to 55°C
Discharging Temperature : -10°C to 60°C
Communication : One CAN for ePropulsion motors / One CAN (Two ports) for parallel batteries / One CAN for charger
Shipping Classification : UN3480, Class 9, UN38.3 Certified
Approvals : CE, UKCA, FCC
Warranty (Non-Commercial Use) : 2 years
G102-230
Chemistry : Lithium Iron Phosphate (LiFePO4)
Rated Voltage : 102.4 V
Capacity : 23552 Wh / 230 Ah
Battery Life : 3,500 cycles at 80% SoH
Weight : 180 kg (396.8 lbs)
Dimensions : 1287 x 366 x 295 mm (50.7 x 14.4 x 11.6 in)
Cut-off Voltage : 83.2 V
Final Charging Voltage : 115.2 V
Max Continuous Discharging Current : 230 A
Serial Connection : N/A
Parallel Connection : Up to 8 in 1 cluster. Multiple clusters are possible in the system
Cell Configuration : 32S1P
Charging Temperature : 0°C to 55°C
Discharging Temperature : -10°C to 60°C
Communication : One CAN for ePropulsion motors / One CAN (Two ports) for parallel batteries / One CAN for charger
Shipping Classification : UN3480, Class 9, UN38.3 Certified
Approvals : CE, UKCA, FCC
Warranty (Non-Commercial Use) : 2 years
The ePropulsion eLite 500W electric outboard introduces a new era of boating with advanced technology and an ultra-compact design. As the smallest and lightest model in the ePropulsion range, it offers an efficient and reliable alternative to small petrol engines, appealing to boating enthusiasts worldwide. Despite its minimal size, the eLite delivers impressive torque and dependable performance for small craft, combining portability with power to redefine electric propulsion for compact vessels.
Specifications
Nominal Power : 500 W
Maximum Power (in Sport mode) : 750 W
Battery : Integrated 378 Wh 25.2V Lithium-ion
Charger : 220V AC charger included, 12V charger optional
Cooling System : Natural water cooling
Rated RPM : 1450 to 1800
Operating Temperature : -5 to 55 °C
Storage Temperature : -20 to 45 °C
Trim and Tilt : 8° / 17° / 26°
Tilt Angle : 75°
Shallow Water Mode Tilt Angle : 36°
Steering Angle : ±70°
Standard
Dimensions (L x W x H) : 297 x 75 x 890 mm (11.7 x 3 x 35”)
Motor Weight (excluding bracket) : 6.7 kg / 14.7 lbs
Motor Weight (including bracket) : 7.9 kg / 17.4 lbs
Adjustable Shaft Length : 401 / 362.5 / 322 / 282.5 mm (15.8 / 14.27 / 12.7 / 11.1”)
Longshaft
Dimensions (L x W x H) : 297 x 75 x 1040 mm (11.7 x 3 x 41”)
Motor Weight (excluding bracket) : 7.3 kg / 16.1 lbs
Motor Weight (including bracket) : 8.5 kg / 18.7 lbs
Adjustable Shaft Length : 551 / 512.5 / 472 / 432.5 mm (21.7 / 20.2 / 18.6 / 17”)
